hot sale wc67k series hydraulic servo cnc bending machine

Product name : hot sale wc67k series hydraulic servo cnc bending machine

Model No. : ZZM-13

Products Category: > Machinery > Bending Machine Series

Basic Info.

Model NO.:WC67K

Type:Press Brake

Application:Machinery & Hardware

Certification:SGS, ISO 9001:2000, ISO 9001:2008

Condition:New

Automation:Automatic

Type for Cutting Machine:CNC Cutting Machine

Type for Fold-bending Machine:CNC Fold-bend Machine

Export Markets:Global

Additional Info.

Trademark:

Origin:Maanshan, Ahhui, China

Production Capacity:500/Year

Product Description

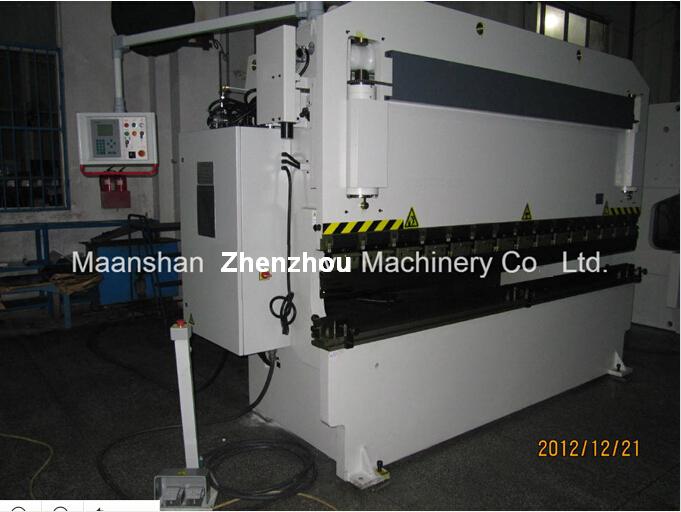

WC67K Series Hydraulic Servo CNC Bending Machine
Tonnage: 40-160 Tons
Working length: 1.25-4 meters

Features :

The appearance of simple, elegant design;

Operation and maintenance is convenient, simple and reliable adjustment;

Simple, effective, accurate mechanical force synchronization control system;

By twisting the slider axis parallel movement, in order to achieve process synchronization; realize the extent of termination by mechanical stoppers;

CNC can be achieved.

Name\type	40/12.5	40/20	40/25	50/20	70/25	70/30	70/40	100/25	100/30	100/40	135/30	135/40	165/30	165/40
Pressing force kN	400	400	400	500	700	700	700	1000	1000	1000	1350	1350	1650	1650
Bending width mm A	1250	2000	2500	2000	2500	3000	4000	2500	3000	4000	3000	4000	3000	4000
distance between uprights mm B	890	1640	2050	1640	2050	2550	3150	2050	2550	3150	2550	3150	2550	2150
Slide stroke mm	100	100	100	100	100	100	100	130	130	130	130	130	150	150
Slider to adjust the distance mm	80	80	80	80	80	80	80	110	110	110	110	110	120	120
Workbench pitch slider mm	300	300	300	300	300	300	300	310	310	310	310	310	350	350
Deep Throat mm	200	200	200	200	200	200	200	200	200	200	200	200	250	250
Table width mm	140	140	140	140	140	140	140	180	180	180	180	180	180	180
Driving speed mm/s	100	100	100	78	100	100	100	100	100	100	100	100	100	100
Working speed mm/s	10	10	10	7	7	7	7	8	8	8	8	8	8	8
Return speed mm/s	90	90	90	80	88	88	88	60	60	60	60	60	68	68
Motor Power kW	3	3	3	3	4	4	4	5.5	5.5	5.5	7.5	7.5	11	11
Net weight kg	2000	2500	3000	2700	4400	4700	6200	5500	6000	8200	7000	8700	8500	10500
After the block spacing mm	400	400	400	400	600	600	600	600	600	600	600	600	600	600
Fuel tank capacity L	63	63	109.5	63	109.5	130.8	130.8	130.8	130.8	130.8	130.8	130.8	164.7	164.7
dimension length mm	1555	2160	2660	2160	2645	3145	4050	2645	3145	4050	3145	4145	3150	4050
width mm	1075	1128	1128	1128	1200	1200	1200	1290	1290	1320	1400	1460	1550	1550
height mm	2149	1980	1980	2030	2120	2120	2315	2240	2240	2420	2290	2420	2600	2600
